PV150 Information and Comparison: [1]


ΠΕΡΙΓΡΑΦΗ
ΤΙΜΟΚΑΤΑΛΟΓΟΣ
ΤΙΜΕΣ 2018
Solar Survey 100/200R Series

A multifunction solar irradiance meter with digital compass, inclinometer and thermometer.

Key features:
  • Suitable for both photovoltaic and solar thermal installations
  • Measures irradiance as required by IEC 62446
  • Built-in compass and inclinometer measure roof orientation and pitch
  • Dual channel temperature measurement
  • 200R features Seaward SolarlinkTM for wireless connectivity with the PV150 Solar Installation tester (available seperately)
  • Built-in data logger and USB interface (Solar Survey 200R model only)
  • Rugged, robust and handheld
Ενδεικτικά
Solar Survey 100 / 396A910
192,85 €
Solar Power Clamp

This Power Clamp is a feature-packed Power Analyser designed to enable efficiency measurements, troubleshooting and maintenance of electrical systems.

Features:
  • DC power measurement
  • AC and AC+DC true continuous power (RMS) reading
  • Power Factor
  • Total harmonic distortion and harmonics 1 - 25
  • Phase rotation indication
  • Measure current and voltage
  • Smart data hold and peak hold
  • Non-contact voltage indicator
Solar Power Clamp / 396A961
305,90 €

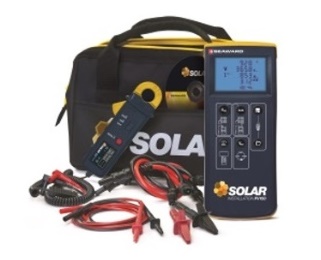

PV150 Installation Test Kit

The world’s first all-inclusive solar PV specific installation electrical safety testing kit with USB download and memory for 200 test records.

Some features:
  • Combines all commissioning tests required by the international IEC 62446 standard
  • Earth / ground continuity, Open circuit voltage, Short circuit current, Insulation resistance etc.
  • Records irradiance wirelessly (separate SolarSurvey 200R required)
Kit includes:
  • 1 x PV150 solar installation tester
  • 1 x AC/DC current clamp
  • Test leads, Test lead adaptors
  • 1 x PV150 UKAS Calibration Certificate
  • Rugged Carry Bag, CD-ROM, Quick Start Guide
PV150 Installation Test Kit / 388A913
1.057,35 €

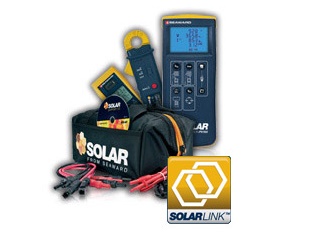

Solarlink Solar Installation Test Kit

A complete solution to the solar testing and measurement requirements for photovoltaic installations with USB download and memory for 200 test records.

Some features:
  • Combines all PV electrical test functions into one tester
  • Earth / ground continuity, Open circuit voltage, Short circuit current, Insulation resistance, Irradiance, Ambient and module temperature etc.
  • Records irradiance and temperature simultaneously to electrical tests being conducted
Kit includes:
  • 1 x PV150 solar installation tester
  • 1 x Solar Survey 200R irradiance meter
  • 1 x AC/DC current clamp
  • Test leads, Test lead adaptors
  • 1 x PV150 UKAS Calibration Certificate
  • 1 x Solar Survey 200R Calibration Certificate
  • Rugged Carry Bag, CD-ROM, Quick Start Guide
Ενδεικτικά
MCS Solarlink Test Kit (PV150 + SS200R) without software / 388A918
1.150,45 €
PV200 Solar Installation Test Kit & I-V Curve Tracer

The PV200 provides a highly efficient and effective test and diagnostic solution for PV systems, carrying out all commissioning tests required by IEC 62446:2016 and performing fast and accurate measurement of I-V curves in accordance with IEC 618.

Standard Kit includes:
  • PV200 PV tester and I-V curve tracer
  • AC/DC current clamp
  • Test leads/Probes etc.
  • PV200 Calibration Certificate
  • Rugged Carry Bag, CD-ROM, Quick Start Guide
  • etc.
Ενδεικτικά
PV200 Standard / 389A910
2.355,00 €



PV200 Solarlink™ Test Kit (as per standard kit +Survey 200R, without software)/ 389A918
2.425,00 €
   SOFTWARE
SolarCerts Elements Software

Easy-to-use Software for Solar PV Test Reporting and Certification.





SolarCerts Elements Software / 393A910
131,67 €
