CURRENT
TRANSFORMERS
|
ΠΕΡΙΓΡΑΦΗ |
 |
| ΤΙΜΕΣ 2018
|
|
|
W0-S20…W5-S210, W10/600

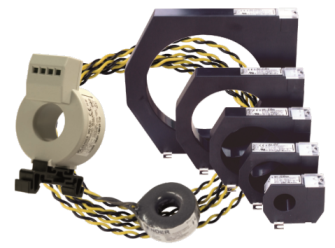

The W0-S20 ... W5-S210 series of current transformers are highly sensitive devices for use with ground fault monitors in standard AC systems. Currents up to 100 A into evaluable RCM or EDS signals.A variety of sizes are available.
-
Available Sizes: 20, 35, 60, 120, 210 mm circular diameter
|
| Ενδεικτικά |
|
W0-S20 / B911787 |
| 57.00 € |
|
|
W…/W…-8000 series
The W series of current transformers are highly sensitive devices for use with ground fault monitors in standard AC systems. A variety of sizes are available.
-
Available Sizes: 20, 35, 60, 120, 210 mm circular diameter
-
Compatible devices: RCM420, RCMS460/490 (When used to monitor standard AC systems),
EDS4XX series
|
| Ενδεικτικά |
|
W20 / B98080003 |
|
76.00 €
|
|
|
|
W..Β series
The WB series of current transformers are highly sensitive devices for use with ground fault monitors in AC and DC systems, as well as systems with variable frequency drives. A variety of sizes are available.
-
Available Sizes: 35, 60, 120, 210 mm circular diameter
-
Compatible devices: RCMA470LY (smallest two sizes), RCMA471LY (largest two sizes)
|
| Ενδεικτικά |
|
W35B/ B98080013 |
| 172.00 € |
|
|
WAB series
The WAB series of current transformers are highly sensitive devices for use with ground fault monitors in AC and DC systems, as well as systems with variable frequency drives. A variety of sizes are available.
-
Available Sizes: 20, 35, 60, 120, 210 mm circular diameter
-
Compatible devices: RCMA420/423 (smallest three sizes), RCMS460/490 series
|
| Ενδεικτικά |
|
W20AB / B98080008 |
| 195.00 € |
|
|
WS…/WS…-8000 series
The WS series of current transformers are highly sensitive devices for use with ground fault monitors in standard AC systems where split-core current tranformers are required. These CTs allow for easy retrofitting into existing systems by opening via an interlocking knob. A variety of sizes are available.
-
Available Sizes: 20x30, 50x80, 80x120
mm rectangular interior (split-core type)
-
Compatible devices: RCM420/460, RCMS460/490 (When used to monitor standard AC systems),
EDS4XX series
|
| Ενδεικτικά |
|
WS20X30 / B98080601 |
| 354.00 € |
|
|
WS50x80S…WS80x160S

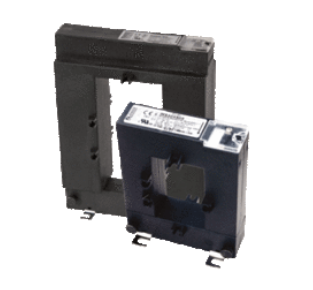

The highly sensitive split-core-type WS… series measuring current transformers convert residual currents of 10 mA…100 A into evaluable RCM or EDS signals and can be retrofitted to existing electrical installations where disconnection must be prevented.
-
Available Sizes:
50x80, 80x80, 80x120, 80x160
mm rectangular interior (split-core type)
-
Compatible devices: RCM, RCMS(When used to monitor standard AC systems)
|
| Ενδεικτικά |
|
WS50X80S / B911741 |
|
405.00 € |
|
|
WF... Series
The WF… series of flexible, split-core type current transformers are highly sensitive measuring tools which measure AC currents and convert them into evaluatable signals. These are specially designed to operate with the RCMS460 and RCMS490 series of ground fault monitors for grounded and high-resistance grounded systems. The assembly consists of one flexible WF… current transformer and one RCC signal converter. Connection to the respective evaluator is via a two-wire cable.
-
Available lengths: 170, 250, 500, 800, 1200, 1800 mm
-
Analogue output (U, I) for external measuring device
-
Compatible devices: RCM, RCMS series (when used to monitor standard AC systems)
|
| Ενδεικτικά |
|
WF170-1 / B78080201 |
| 591.00 € |
|
|
WR... series
The WR series of current transformers are highly sensitive devices for use with ground fault monitors in standard AC systems. These CTs have a large, rectangular interior for systems with large wiring or busbars. A variety of sizes are available.
-
Available Sizes: 70x115, 115x305
mm rectangular interior
-
Compatible devices: Standard RCM series, RCMS series (When used to monitor standard AC systems), EDS4XX
|
| Ενδεικτικά |
|
WR70X115 / B98080609 |
| |
|
|
WR70x175S(P)…WR200x500S(P)
The highly sensitive WR…S series measuring current transformers of rectangular type convert AC currents into evaluable measurement signals, in combination with RCM and RCMS series residual current monitors and evaluators.
-
Available Sizes:
70x175, 115x305, 150x350, 200x500
mm rectangular interior
-
Compatible devices: RCM, RCMS(When used to monitor standard AC systems), EDS4XX
|
| Ενδεικτικά |
|
WR70-175S / B911738 |
| 613.00 € |
|
