VOLTAGE
COUPLERS
ΠΕΡΙΓΡΑΦΗ
ΤΙΜΟΚΑΤΑΛΟΓΟΣ
ΤΙΜΕΣ 2018
AGE185

The AGE185 voltage coupler allows the EDS series of portable ground fault locators to monitor systems up to 790 V AC and 960 V DC.

AGE185 / B980305
126.00 €
AGH150W-4

The AGH150W-4 coupling device is designed to extend the nominal voltage range of the ISOMETER® IRDH… series to AC 0…1150 V, DC 0…1760 V.

The coupling device is connected to the system being monitored by two poles and connected to the terminal AK of the ISOMETER® by means of the terminal AK160.
AGH150W-4 / B98018006
364.00 €
AGH204S-4

The AG204S-4 coupler extends the nominal AC and 3(N)AC voltage range of many ungrounded fault devices to 0...1650 V AC and 0...1300 V 3(N)AC.

The coupling device is connected to the system being monitored by two poles and connected to the terminal AK of the ISOMETER® by means of the terminal AK160.
AGH204S-4 / B914013
731.00 €
AGH520S

The coupling device AGH520S is designed to extend the nominal voltage range of the ISOMETER® IRDH275-4…/IRDH375-4…/IR470LY-40/IR420-D6/IRDH1065B-4 to (3)AC 0…7200 V, 50…400 Hz.

The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK of the ISOMETER® by means of the terminal 5.
AGH520S / B913033
887.00 €
AGH675S-7/AGH675S-7MV15

The AGH675S-7 coupler extends the nominal AC voltage range of the IRDH275BM-7 to 0...7200 V.

The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK of the ISOMETER® by means of the terminal 5.
Ενδεικτικά
AGH675S-7-2000 / B913061
1.796.00 €

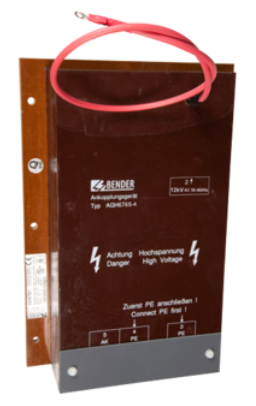

AGH676S-4

The coupling device AGH676S-4 is designed to extend the nominal voltage range of the ISOMETER® IRDH275-4xx/IRDH375-4xx/IR420-D64 to AC, 3(N)AC 0…12 kV, 50…460 Hz.

The coupling device is connected to the system to be monitored by one pole and connected to the terminal AK

AGH676S-4 / B913055
2.514.00 €
